Allstate 5098 Ch= 833.50980

Allstate 5098 Ch= 833.50980; Sears, Roebuck & Co. (ID = 642853) Car Radio

Allstate 5098 Ch= 833.50980; Sears, Roebuck & Co. (ID = 642854) Car Radio

Allstate 5098 Ch= 833.50980; Sears, Roebuck & Co. (ID = 642855) Car Radio

Allstate 5098 Ch= 833.50980; Sears, Roebuck & Co. (ID = 642856) Car Radio

Allstate 5098 Ch= 833.50980; Sears, Roebuck & Co. (ID = 642857) Car Radio

Allstate 5098 Ch= 833.50980; Sears, Roebuck & Co. (ID = 642858) Car Radio
Use red slider bar for more.
Allstate 5098 Ch= 833.50980; Sears, Roebuck & Co. (ID = 642853) Car Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1959 ? Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 8: 12BA6 12BE6 12BA6 12AV6 12AV6 12AQ5 12AQ5 12X4
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Allstate 5098 Ch= 833.50980 - Sears, Roebuck & Co.; Chicago
Material Metal case
Shape Chassis only or for «building in»
Notes The Sears, Roebuck & Co Model Allstate 5098 is a Battery operated Tractor AM Receiver.

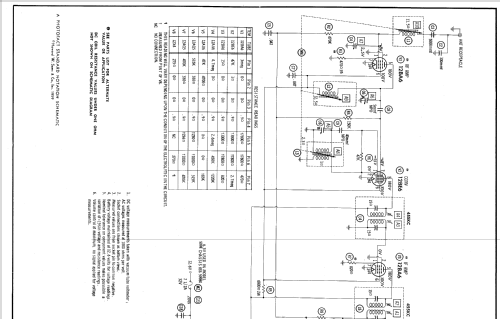

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 3-59, Set 435, Folder 4)

Model page created by Egon Penker. See "Data change" for further contributors.
