For model Detector Receiving Set = Crescent 1 Tube Receiver Model 4 Order= 57A 2656, Sears, Roebuck & Co.; Chicago (IL):

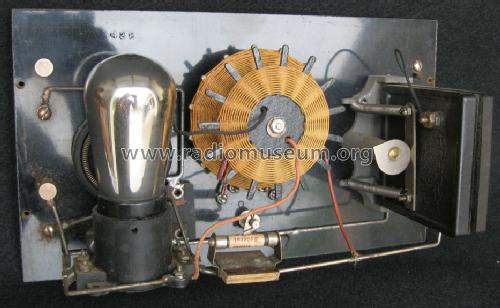

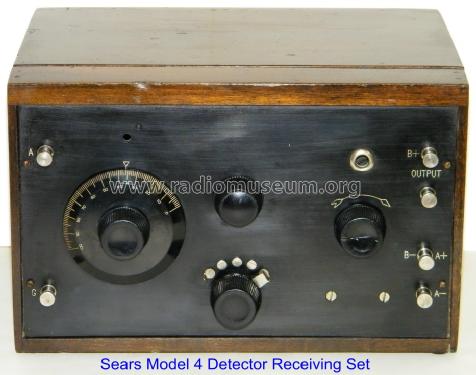

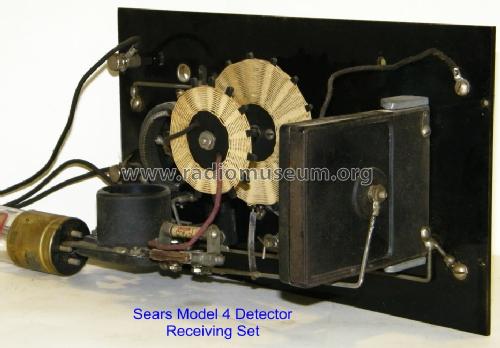

Sears Model 4 Detector Receiving Set

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1924/1925 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 1: WD12
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Detector Receiving Set = Crescent 1 Tube Receiver Model 4 Order= 57A 2656 - Sears, Roebuck & Co.; Chicago
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 11 x 7 x 7.625 inch / 279 x 178 x 194 mm
Notes The Sears Roebuck Model 4 Detector Receiving set was manufactured for Sears by The Precision Equipment Company which was owned by the Crosley Radio Corporation by this time. Crosley parts are used throughout the set. This little set tuned the wavelength range of 200-600 meters. The Model 2 sold for $28.85 complete with aerial, batteries, headphones and WD12 tube. $27.55 with all accessories except aerial or $18.75 just for the radio with no accessories.

For 1925 we have the following information:

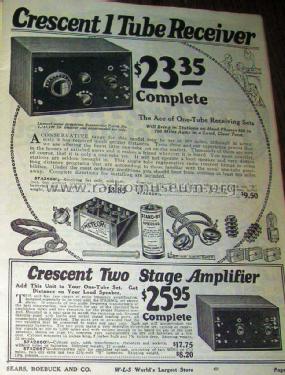

The Crescent 1-tube regenerative receiver is offered in the catalog "459" as 57A2656 1/4 without accessories like the tube etc. for $ 13.85 plus the accessories, listed as 57A2659 1/4 for an other $ 9.50, containing tube, "B" battery, dry cell, headphones, aerial and ground outfit. This results together in $ 23.35. The name Silvertone is not mentioned.
Net weight (2.2 lb = 1 kg) 10 lb 0 oz (10 lb) / 4.540 kg
Price in first year of sale 19.00 $
Mentioned in Sears, Roebuck Catalogs (Silvertone) (Sears Radio Catalog 1924 and 1925, page 7)
Literature/Schematics (1) 1924 Sears Roebuck Radio catalog

Model page created by Alan Larsen. See "Data change" for further contributors.
