Harmony 8418 T.H.C.

Harmony 8418 T.H.C.; Sears, Roebuck & Co. (ID = 1787037) Ampl/Mixer
Harmony 8418 T.H.C.; Sears, Roebuck & Co. (ID = 1787038) Ampl/Mixer Harmony 8418 T.H.C.; Sears, Roebuck & Co. (ID = 1787039) Ampl/Mixer
Harmony 8418 T.H.C.; Sears, Roebuck & Co. (ID = 1787040) Ampl/Mixer Harmony 8418 T.H.C.; Sears, Roebuck & Co. (ID = 1787041) Ampl/Mixer
Use red slider bar for more.
Harmony 8418 T.H.C.; Sears, Roebuck & Co. (ID = 1787038) Ampl/Mixer
Sears, Roebuck & Co.: Harmony 8418 T.H.C. [Ampl/Mixer] ID = 1787038 1400x1532
Select picture or schematic to display from thumbnails on the right and click for download.
For model Harmony 8418 T.H.C., Sears, Roebuck & Co.; Chicago (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1950 ? Category: Audio Amplifier or -mixer
Valves / Tubes 3: 6SJ7 6V6GT 5Y3GT
Main principle Audio-Amplification
Wave bands - without
Details Guitar Amplifier
Power type and voltage Alternating Current supply (AC) / 60 cycle, 110-117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out 5 W (max.)
from Radiomuseum.org Model: Harmony 8418 T.H.C. - Sears, Roebuck & Co.; Chicago
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 305 x 380 x 220 mm / 12 x 15 x 8.7 inch
Notes

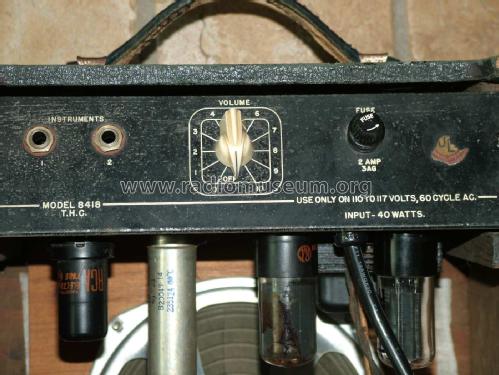

Small Guitar Amplifier
Two Input Jacks
Volume Control with On-Switch

Net weight (2.2 lb = 1 kg) 4.9 kg / 10 lb 12.7 oz (10.793 lb)

Model page created by Hannes Gerber. See "Data change" for further contributors.
