Silvertone 2006 Ch= 757.110
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1953 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 88861
-
- Brand: Silvertone
Beitman
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / AC/DC 117=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Various materials
- from Radiomuseum.org
- Model: Silvertone 2006 Ch= 757.110 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Silvertone model 2006 is an AC/DC operated superheterodyne receiver.
This Silvertone model is green and is available also in brown (model 2003), ivory (model 2004) and red (model 2005).
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 13, 1953
- Literature/Schematics (2)

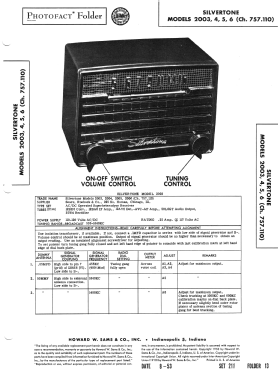

- Photofact Folder, Howard W. SAMS (Set 211, folder 13, dated 8-53)
- Author
- Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
