Silvertone 2014 Ch= 132.021 Order=57G 02014

Silvertone 2014 Ch= 132.021 Order=57G 02014; Sears, Roebuck & Co. (ID = 539056) Radio

Silvertone 2014 Ch= 132.021 Order=57G 02014; Sears, Roebuck & Co. (ID = 539057) Radio

Silvertone 2014 Ch= 132.021 Order=57G 02014; Sears, Roebuck & Co. (ID = 539058) Radio

Silvertone 2014 Ch= 132.021 Order=57G 02014; Sears, Roebuck & Co. (ID = 539059) Radio
Silvertone 2014 Ch= 132.021 Order=57G 02014; Sears, Roebuck & Co. (ID = 845618) Radio Silvertone 2014 Ch= 132.021 Order=57G 02014; Sears, Roebuck & Co. (ID = 845619) Radio
Silvertone 2014 Ch= 132.021 Order=57G 02014; Sears, Roebuck & Co. (ID = 845621) Radio Silvertone 2014 Ch= 132.021 Order=57G 02014; Sears, Roebuck & Co. (ID = 845623) Radio
Silvertone 2014 Ch= 132.021 Order=57G 02014; Sears, Roebuck & Co. (ID = 845622) Radio Silvertone 2014 Ch= 132.021 Order=57G 02014; Sears, Roebuck & Co. (ID = 539060) Radio
Silvertone 2014 Ch= 132.021 Order=57G 02014; Sears, Roebuck & Co. (ID = 845620) Radio Silvertone 2014 Ch= 132.021 Order=57G 02014; Sears, Roebuck & Co. (ID = 845624) Radio
Silvertone 2014 Ch= 132.021 Order=57G 02014; Sears, Roebuck & Co. (ID = 1325560) Radio Silvertone 2014 Ch= 132.021 Order=57G 02014; Sears, Roebuck & Co. (ID = 1335591) Radio
Use red slider bar for more.
Silvertone 2014 Ch= 132.021 Order=57G 02014; Sears, Roebuck & Co. (ID = 845618) Radio
Sears, Roebuck & Co.: Silvertone 2014 Ch= 132.021 Order=57G 02014 [Radio] ID = 845618 800x432
Select picture or schematic to display from thumbnails on the right and click for download.
For model Silvertone 2014 Ch= 132.021 Order=57G 02014, Sears, Roebuck & Co.; Chicago (IL):
Ebay 230542520912 antique-radio

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1952–1955 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Silvertone 2014 Ch= 132.021 Order=57G 02014 - Sears, Roebuck & Co.; Chicago
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 13.875 x 6.75 x 6.5 inch / 352 x 171 x 165 mm
Notes

Cabinet= Green. See also the Silvertone model 2015 in Brown or model 2016 in Ivory.


Price in first year of sale 28.50 $

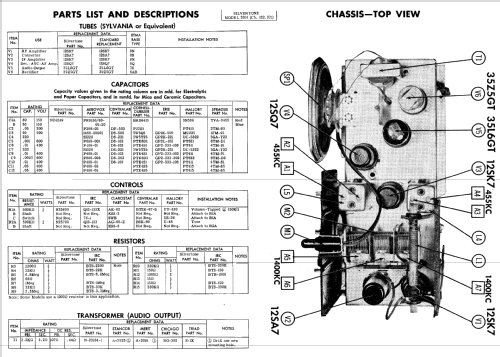

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 3-53, Set 196, Folder 15)

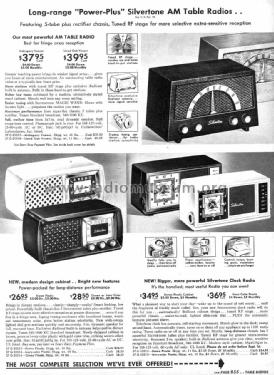

Literature/Schematics (3) Sears, Roebuck Catalogs (Silvertone) (1952/53 page 855. 1953/54 page 886, 1954 page 774, 1954/55 page 918.)

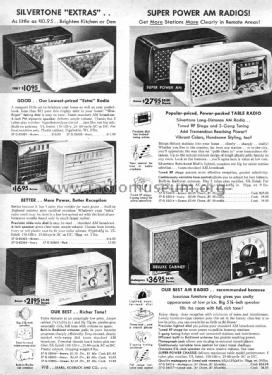

Literature/Schematics (4) Sears, Roebuck Catalogs (Silvertone) (Spring & Summer 1955, page 778.)

Model page created by Egon Penker. See "Data change" for further contributors.
