• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1959/1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 146019

• • Brand: Silvertone

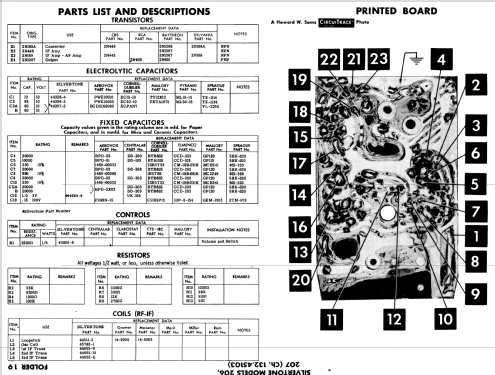

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• 2N168A 2N448 2N169 2N1097 1N295

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; Reflex

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931). / Ø 2.75 inch = 7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Silvertone 206 Ch= 132.45103 Order=57K 206 - Sears, Roebuck & Co.; Chicago

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 3 x 6 x 1.5 inch / 76 x 152 x 38 mm

• Notes

• Battery operated transistorized portable AM receiver. Sams photofact set 489 folder 19 features the Silvertone models 206 and 207 as the same schematic.

  Model	Cabinet
  206	Smoke Gray
  207	Malibu Coral



  2nd IF-transistor used as reflex stage for LF amplification

• Price in first year of sale
• 17.95 $

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 489 folder 19 date 6-60)

• Literature/Schematics (4)
• Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1960, page 929.)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
