• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 342313

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 99101 or. 2N1527 99103 or. 2N247 99102 or. 2N247 99201 or. 2N406 99203 or. 2N408 99203 or. 2N408

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Silvertone 4201 Ch= 132.74601, 132.74602 - Sears, Roebuck & Co.; Chicago

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 65 x 102 x 33 mm / 2.6 x 4 x 1.3 inch

• Notes

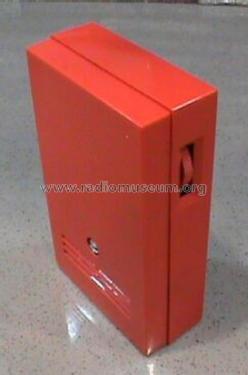

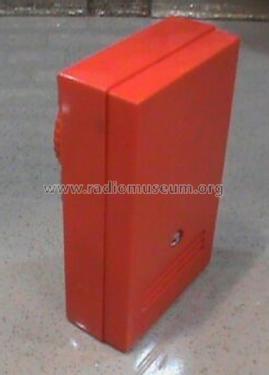

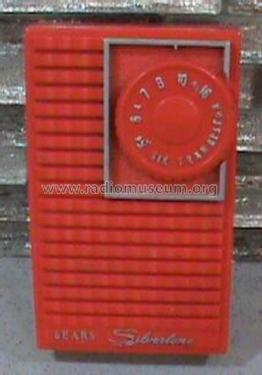

• Upper round tuning knob.  Plastic block pattered grille. US civil defense marks on station dial.

  Special 9-volt battery required.

  Note: The photo of a 4201 radio in Transistors Radios by Lane, page 99 is not a 4201, it is a 4206 (with a strap stud on the left side), from the model series 4205, 4206, 4207.

  Model Cabinet Metal Trim 4201 Red No 4202 Black Yes 4203 Blue Mist   Yes 4204 Coral Yes

• Price in first year of sale
• 6.99 USD

• Mentioned in
• Transistor Radios (Page 99)

• Literature/Schematics (1)
• Photofact TSM Transistor Radio Series SAMS (TSM-29, Oct. 1963)

• Literature/Schematics (2)

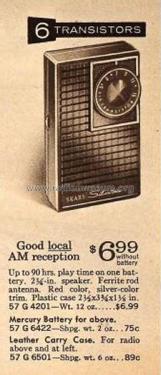

• Sears, Roebuck Catalogs (Silvertone) (1963 Fall Winter, page 1372)

• Author
• Model page created by Jerry Elarton. See "Data change" for further contributors.
