• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1957 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 271646

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12AU7A 12AX7 12AU7A 6V6GT 6X5GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 110-120 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 6 inch = 15.2 cm

• Material
• Various materials

• from Radiomuseum.org
• Model: Silvertone 7074 Ch= 567.34006 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, with any shape - general.

• Notes

• The Sears Silvertone 7074 is an AC operated 5 tube 2 Speed reel to reel tape recorder.  Operates at 3 3/4" and 7 1/2" per second speeds and accepts either 5" or 7" reels.  Has Qty(2) PM 6" speakers and jacks for using either an external speaker or an external amplifier.

• Mentioned in

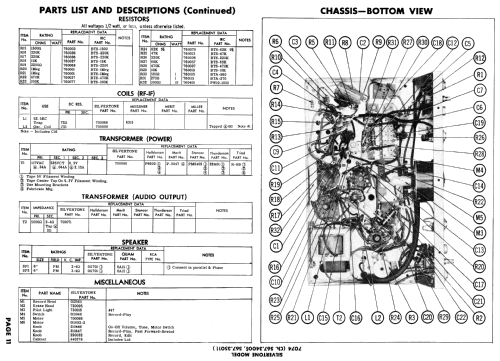

• Photofact Folder, Howard W. SAMS (Set 351, Folder 17, Date 3-57)

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
