• Year
  • 1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 226347
    • Brand: Silvertone

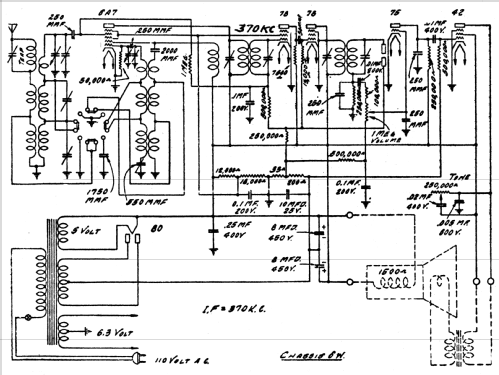

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 370 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Short Wave(s) and Police.
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 110 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
  • from Radiomuseum.org
  • Model: Silvertone 7151 - Sears, Roebuck & Co.; Chicago
  • Notes
  • The Sears Silvertone 7151 is an AC operated 6 tube BC, Police and SW band receiver.

    The chassis and schematic used in this model also used in Sears Silvertone model 7159.

    See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Detrola Radio Corp., Detroit, Mich (Sears Manufacturer Source Number Code 109).

  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
