Silvertone 7169
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 226249
-
- Brand: Silvertone

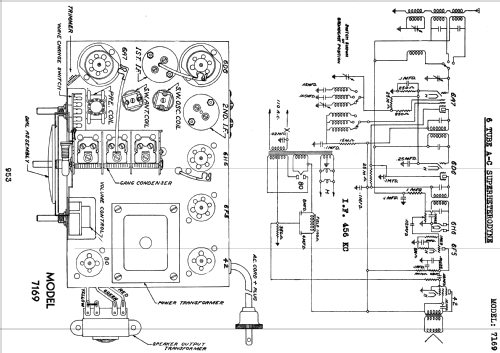

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 7169 - Sears, Roebuck & Co.; Chicago
- Notes
-
The Silvertone 7169 is an AC operated 6 tube BC, Police and SW band receiver.
See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Continental Radio & Television, Chicago, Ill (Sears Manufacturer Source Number Code 105).
- Source of data
- Silvertone Radios, Service Inf. 1928 thru 1936
- Literature/Schematics (1)
- Silvertone Radios, Service Inf. 1928 thru 1936 (Pages 953 to 954)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
