• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 252573

• • Brand: Silvertone

• Number of Tubes
• 18

• Valves / Tubes
• 6CY5 6EZ8 6AU6 6AU6 EM84 or 6FG6 6AU6 6AL5 6BE6 6BA6 12AU7A 7025 7025 7025 6BQ5 6BQ5 6BQ5 6BQ5 5U4GB

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details

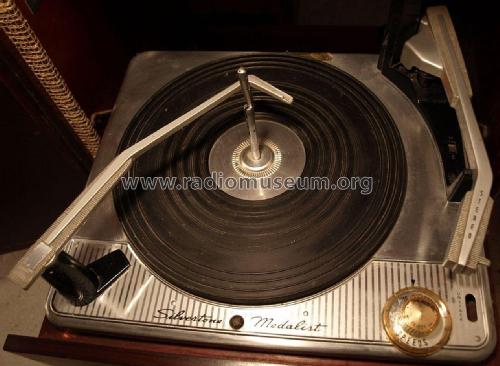

• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 115 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 73 Order=57K 73N - Sears, Roebuck & Co.; Chicago

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 43 x 32 x 16 inch / 1092 x 813 x 406 mm

• Notes

• Model	Cabinet
  73	Mahogany Veneer
  74	Limed Oak Veneer
  75	Fruitwood Veneer



• Price in first year of sale
• 384.95 $

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 481, folder 12)

• Literature/Schematics (2)
• Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1960, page 923.)

• Author
• Model page created by Noemi Erb. See "Data change" for further contributors.
