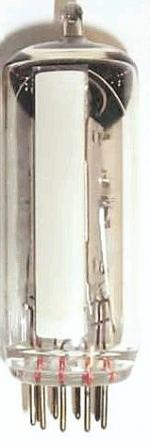

6FG6

Information - Help
ID = 4841

Country:
Worldwide
Brand:
Tube type:  Mag. bar tuning indicator   Indication
Identical to 6FG6 = EM84
Similar Tubes
Other characteristic (electr. data):
  6E2
First Source (s)
09.Feb.1959 : Electron Tube Registration List
Base Noval, 9 pin miniature (USA pico-9) B9A
Was used by Radio/TV-reception etc.
Filament Vf 6.3 Volts / If 0.21 Ampere / Indirect / Specified voltage AC/DC
Description With a 250V supply and 470k ohm load, requires typically 0 to -22V grid voltage for full range of indication from 0 to 21mm bar length. It has a variable gain characteristic which improves the sensitivity to weak signals.
Tube prices 1 Tube prices (visible for members only)
Information source Essential Characteristics, GE 1973
6FG6: Internet
Miguel Angel Trujillo-Rodriguez     More ...
no75_g_2.gif 6FG6: RTT Schwandt
Günther Stabe † 19.8.20

Just Qvigstad 		6fg6_data_p1.png
6FG6: Miniwatt Electronics Handbook 1965
Stuart Irwin
More ...
Usage in Models 1= 1958 ; 2= 1959? ; 1= 1960?? ; 5= 1960? ; 3= 1960 ; 1= 1961? ; 6= 1961 ; 2= 1962?? ; 5= 1962? ; 4= 1962 ; 1= 1963?? ; 40= 1963? ; 7= 1963 ; 6= 1964? ; 5= 1965?? ; 1= 1965? ; 1= 1966? ; 1= 1967?? ; 1= 1967 ; 1= 1968?? ; 1= 1969?? ; 1= 1969 ; 1= 1971 ; 1= 2015
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):98

Collection of

Bruno Candreia (CH)
Emilio Ciardiello (I)
Karlheinz Fischer (D)
Alden Hackmann (USA)
David Erali (USA)
Jorge Juan Stark (RA)
