Silvertone 92

Silvertone 92 ; Sears, Roebuck & Co. (ID = 1343951) Radio

Silvertone 92 ; Sears, Roebuck & Co. (ID = 1343952) Radio

Silvertone 92 ; Sears, Roebuck & Co. (ID = 1343953) Radio

Silvertone 92 ; Sears, Roebuck & Co. (ID = 1343954) Radio

Silvertone 92 ; Sears, Roebuck & Co. (ID = 1343955) Radio

Silvertone 92 ; Sears, Roebuck & Co. (ID = 1343956) Radio

Silvertone 92 ; Sears, Roebuck & Co. (ID = 1343957) Radio

Silvertone 92 ; Sears, Roebuck & Co. (ID = 1343958) Radio

Silvertone 92 ; Sears, Roebuck & Co. (ID = 1343960) Radio

Silvertone 92 ; Sears, Roebuck & Co. (ID = 1343961) Radio
Use red slider bar for more.
Silvertone 92 ; Sears, Roebuck & Co. (ID = 1343951) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1929 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UX226 UX226 UX226 UY227 UY227 UX171A UX280
Main principle TRF without regeneration; 2 AF stage(s); Neutrodyne
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / Either transformer: 25 cycles, 105 to 130V or 60 cycle, 105 to 130 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Silvertone 92 - Sears, Roebuck & Co.; Chicago
Material Metal case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes

The Sears Silvertone 92 is a AC operated 7-tube Neutrodyne BC Band receiver.  First stage is an un-tuned RF amplifier. Has jack for headphones which bypasses last two audio gain stages.

See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Colonial Radio Corp., Buffalo, NY (Sears Manufacturer Source Number Code 101).

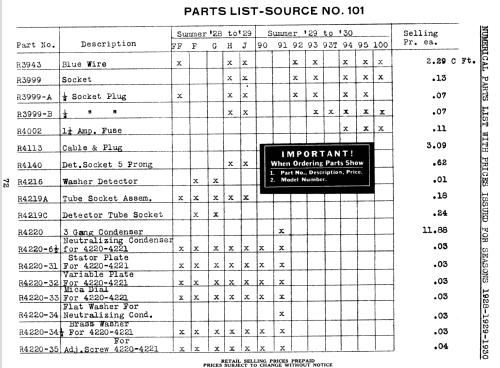

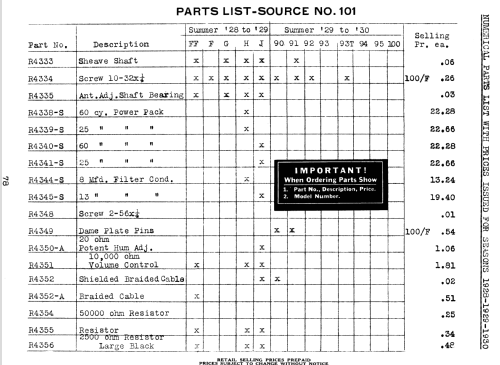

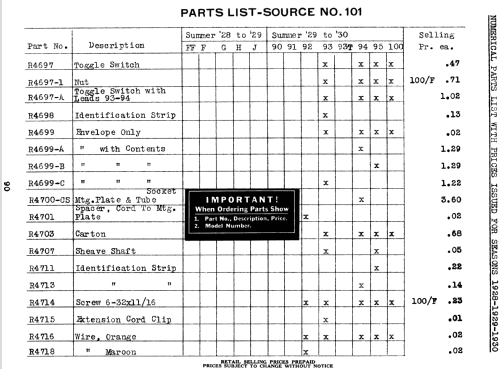

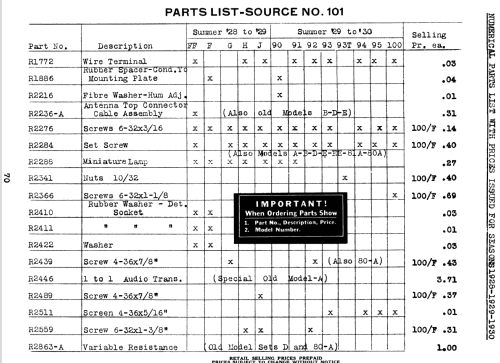

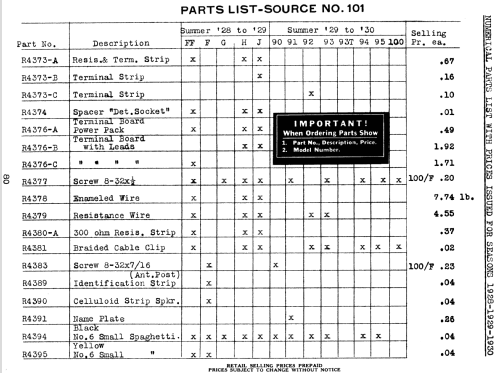

Literature/Schematics (1) Silvertone Radios, Service Inf. 1928 thru 1936 (Pages 57 to 58)

Model page created by John Kusching. See "Data change" for further contributors.
