Jukebox Musikautomat Select-O-Matic KD-200 KD-200H mit Crediteinheit für 4 Münzsorten (Halfdollar)

Seeburg Corp., J. P.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Seeburg Corp., J. P.; Chicago, IL

Year
1957

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
207670

Schematics

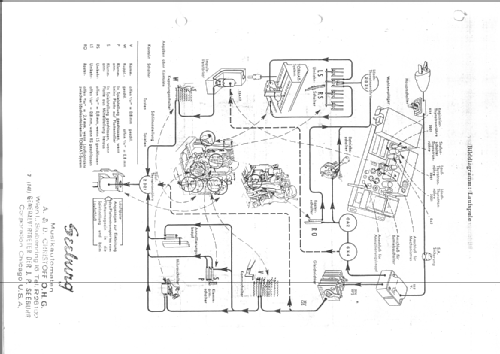

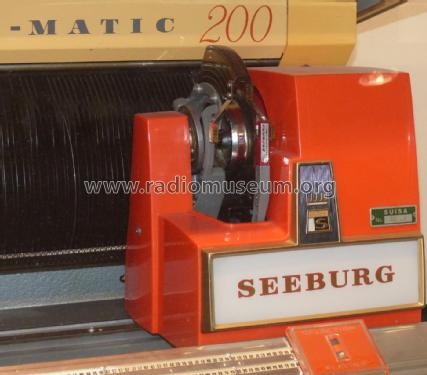

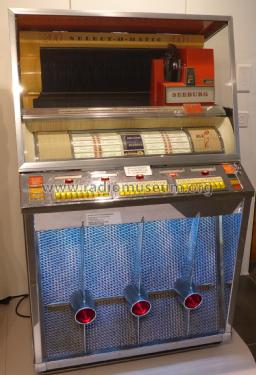

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 1115206) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (3)

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 1115210) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (3)

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 1115212) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (3)

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 1115213) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (3)

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 1115214) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (3)

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 1115222) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (3)

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 1115224) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (3)

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 1340964) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (3)

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 1340968) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (3)

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 1340969) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (3)

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 1111116) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (1)
Haupt

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 2038411) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (2)

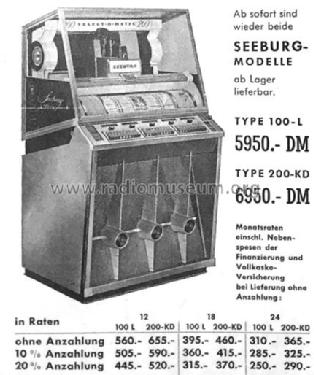

Bild aus Anzeige.

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 1111125) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (1)
Typenschild

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 1111117) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (1)

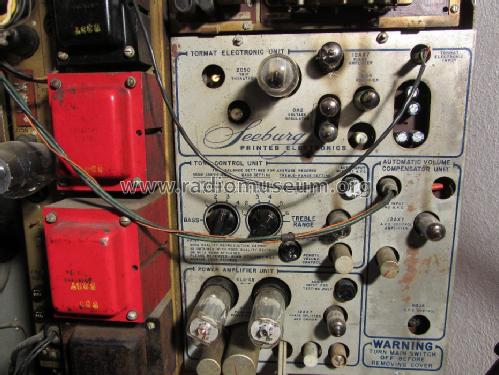

Amplifier/Tormat Platine

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 1111118) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (1)

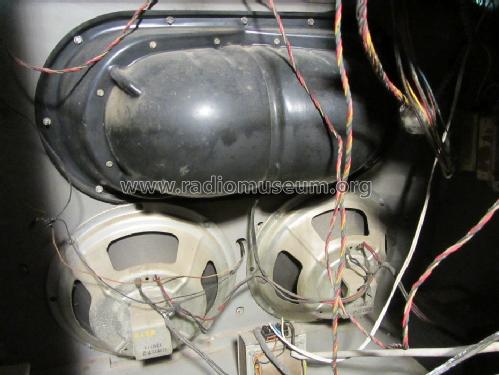

Lautsprecher innen

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 1111119) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (1)
Münzprüfer

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 1111120) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (1)
Oberansicht

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 1111121) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (1)
Platine

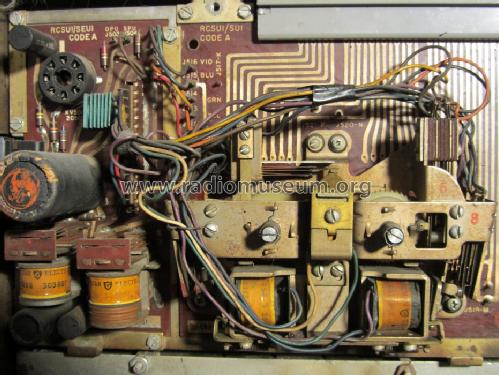

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 1111122) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (1)
Relaise Platine

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 1111123) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (1)

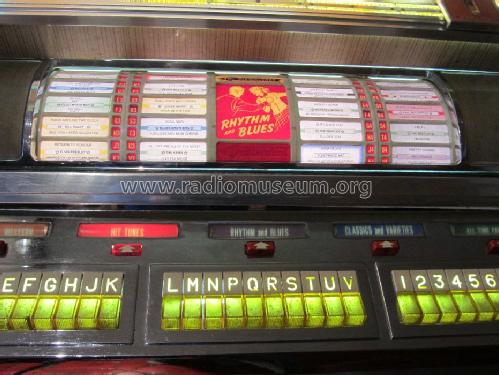

Titelwalze

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 1111124) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (1)
Tormat

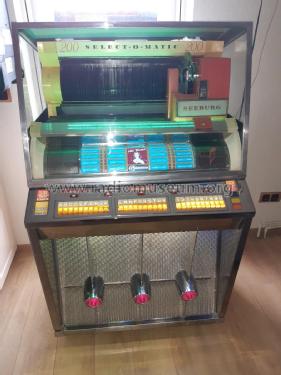

Jukebox Musikautomat Select-O-Matic KD-200; Seeburg Corp., J. P. (ID = 2605221) R-Player — Seeburg Corp., J. P. Jukebox Musikautomat Select-O-Matic KD-200 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
11

Valves / Tubes
12AX7 6BJ6 12AX7 12AX7 6L6 6L6 5U4 6X4 0A2 0A2 12AX7 2050 2050

Main principle
Audio-Amplification

Wave bands
- without

Details
Jukebox-Coin operated Phonograph

Power type and voltage
Alternating Current supply (AC) / 117 V, mit Vorschalttrafo 230 Volt

Loudspeaker
4 Loudspeakers / Ø 12 inch = 30.5 cm

Power out
20 W (unknown quality)

Material
Wooden case

from Radiomuseum.org
Model: Jukebox Musikautomat Select-O-Matic KD-200 [KD-200H mit Crediteinheit für 4 Münzsorten ] - Seeburg Corp., J. P.; Chicago,

Shape
Console, Lowboy (legs < 50 %).

Dimensions (WHD)
930 x 1490 x 700 mm / 36.6 x 58.7 x 27.6 inch

Notes
Musikbox mit Dual-Vorwähler DCU1-L5, Wähleinrichtung TORMAT 200 TM 1-L5,
100 Platten Magazin, 45 UpM, Mechanismus Select-O-Matic.

Musikbox mit Select-O-Matic - Mechanismus für 200 Wahlmöglichkeiten (100 Singles oder Albums mit 45 UpM), Wahlspeicher Tormat 200TM2, Crediteinheit DPU1 (Dual Pricing Unit) für 3 Münzsorten und 2 Spielpreise.

Bei der Modellvariante KD-200H gibt es zusätzlich zur DPU-1 noch das Zusatzgerät HDU-1 (Half Dollar Unit) für die vierte Münzsorte).

Es gibt auch ein ansonsten baugleiches Modell KS-200, das mit einer Crediteinheit SPU-1 (Single Pricing Unit), bzw. SPU-1H (für 4 Münzsorten) für nur einen Spielpreis ausgestattet ist.

Amplifier = 25PAU-1.

Net weight (2.2 lb = 1 kg)
400 lb (400 lb 0 oz) / 181.6 kg

Price in first year of sale
6,950.00 DM

Literature/Schematics (1)
-- Original-techn. papers.

Author
Model page created by Wolfgang Bila. See "Data change" for further contributors.

Other Models
Here you find 57 models, 40 with images and 23 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Seeburg Corp., J. P.; Chicago, IL
