Georgette II EA346 mit Ausschalter
Use red slider bar for more.

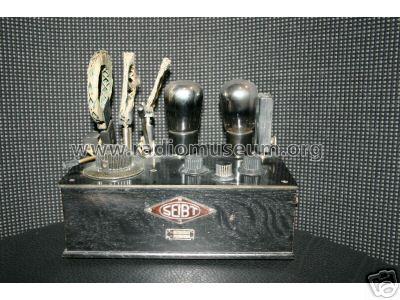

Seibt, Dr. Georg: Georgette II EA346 [Radio] ID = 874 525x525
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1928/1929 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 2: VT126_TKD or NZ420P RE154 or RE134 |
|---|
| Main principle | TRF with regeneration; 2 AF stage(s) |
|---|---|
| Tuned circuits | 1 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Storage and/or dry batteries |
| Loudspeaker | - This model requires external speaker(s). |
| Power out | |
| from Radiomuseum.org | Model: Georgette II EA346 [mit Ausschalter] - Seibt, Dr. Georg Nachf.; |
| Material | Wooden case, TUBES VISIBLE. |
| Shape | Tablemodel, with any shape - general. |
| Notes | Ausschalter erspart, dass nach jeder Inbetriebnahme die Heizung neu justiert werden muss. |
| Price in first year of sale | 59.00 RM + |
| Source of data | Radiokatalog Band 1, Ernst Erb |
| Circuit diagram reference | Röhren in FS-Bestückungstabellen |
| Mentioned in | Kat. Radio-WEB 1928 |
