• Country
• Germany

• Manufacturer / Brand
• Seibt, Dr. Georg (Nachf.); Berlin, auch München

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 116922

• Number of Tubes
• 2

• Valves / Tubes
• RV2,4P700 RV2,4P700

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 2,4-4 & 90-150 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

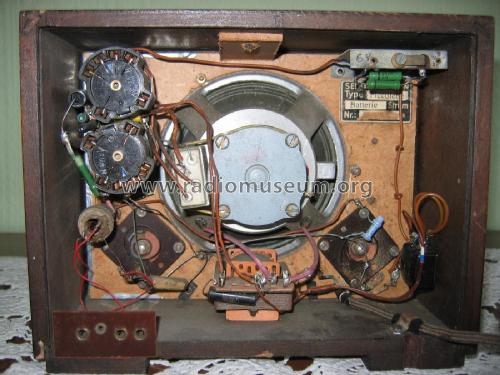

• Model: Piccolette Batterie - Seibt, Dr. Georg Nachf.;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 220 x 180 x 100 mm / 8.7 x 7.1 x 3.9 inch

• Notes
• Heizung mit 2,4V oder 4V möglich. Schaltbarer Vorwiderstand im Inneren.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
