• Year
  • 1946/1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 5707

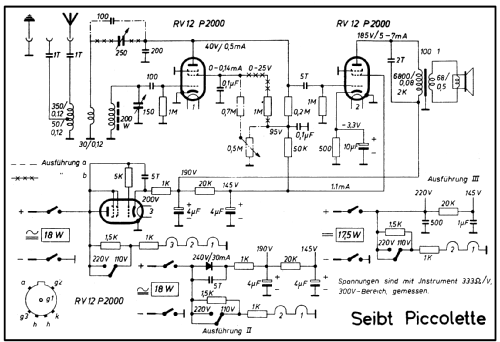

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • TRF with regeneration; 1 AF stage(s)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 110/220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Piccolette I - Seibt, Dr. Georg Nachf.;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 220 x 180 x 100 mm / 8.7 x 7.1 x 3.9 inch
  • Notes
  • Es gibt Ausführung I mit Gleichrichterrohr,
    Ausführung II mit Trockengleichrichter,
    Ausführung III für Gleichstrom, und
    Ausführung Batterie.
  • Source of data
  • Radiokatalog Band 1, Ernst Erb
  • Circuit diagram reference
  • Lange + Schenk Nr. 30 von 1948
