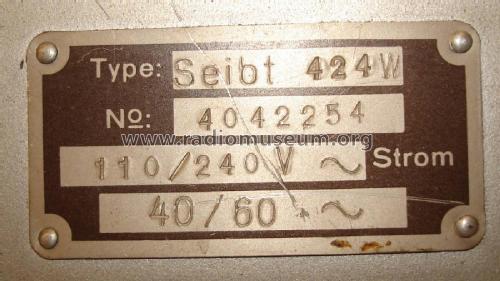

Reichs-Super 424 (W)

• Country
• Germany

• Manufacturer / Brand
• Seibt, Dr. Georg (Nachf.); Berlin, auch München

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5718

• Picture
• Schematics

Previous Next

Previous Next

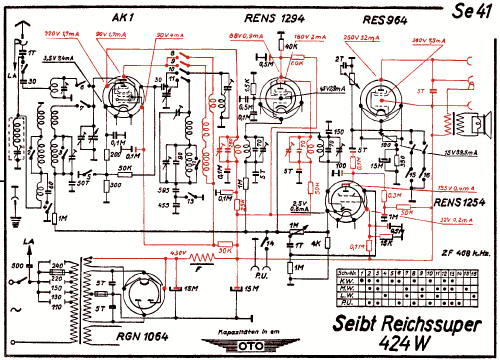

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• AK1 RENS1294 RENS1254 RES964 RGN1064

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Reichs-Super 424 - Seibt, Dr. Georg Nachf.;

• Dimensions (WHD)
• 480 x 402 x 345 mm / 18.9 x 15.8 x 13.6 inch

• Notes
• Länderselektion! (424a nicht) ; Price in Spain Apr.1935 1133 pesetas (model 424a)

• Net weight (2.2 lb = 1 kg)
• 18 kg / 39 lb 10.4 oz (39.648 lb)

• Price in first year of sale
• 333.00 RM

• Source of data
• Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Historische Radios Band II (140)

• Literature/Schematics (1)
• Radio-Katalog, Mix & Genest Hansawerke, 1935

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
