Roland 33L Holz

Roland 33L; Seibt, Dr. Georg (ID = 2265807) Radio Roland 33L; Seibt, Dr. Georg (ID = 1648744) Radio
Roland 33L; Seibt, Dr. Georg (ID = 1648745) Radio Roland 33L; Seibt, Dr. Georg (ID = 1648746) Radio
Roland 33L; Seibt, Dr. Georg (ID = 1648747) Radio Roland 33L; Seibt, Dr. Georg (ID = 2265808) Radio
Roland 33L; Seibt, Dr. Georg (ID = 2613288) Radio Roland 33L; Seibt, Dr. Georg (ID = 2613289) Radio
Roland 33L; Seibt, Dr. Georg (ID = 2613290) Radio Roland 33L; Seibt, Dr. Georg (ID = 2613291) Radio
Use red slider bar for more.

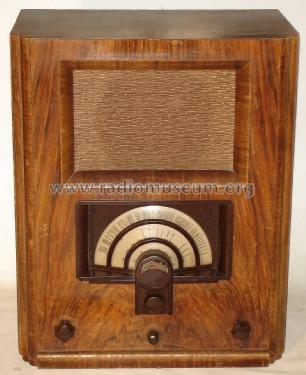

Roland 33L; Seibt, Dr. Georg (ID = 2265807) Radio
Seibt, Dr. Georg: Roland 33L [Radio] ID = 2265807 1400x1712
Select picture or schematic to display from thumbnails on the right and click for download.

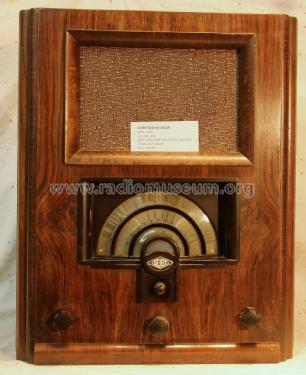

For model Roland 33L Holz, Seibt, Dr. Georg (Nachf.); Berlin, auch München

Country:  Germany
Manufacturer / Brand:  Seibt, Dr. Georg (Nachf.); Berlin, auch München
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RENS1294 RENS1264 RES964 RGN1064
Main principle TRF with regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Roland 33L [Holz] - Seibt, Dr. Georg Nachf.;
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 420 x 514 x 265 mm / 16.5 x 20.2 x 10.4 inch
Notes

Siehe auch Seibt Roland 33L mit Bakelitgehäuse.

Net weight (2.2 lb = 1 kg) 15.9 kg / 35 lb 0.4 oz (35.022 lb)

Model page created by Martin Steyer. See "Data change" for further contributors.



All listed radios etc. from Seibt, Dr. Georg (Nachf.); Berlin, auch München
Here you find 402 models, 336 with images and 198 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
