TL916

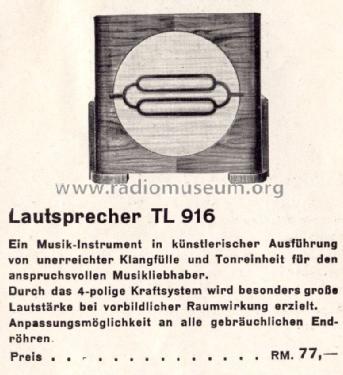

TL916; Seibt, Dr. Georg (ID = 885) Speaker-P TL916; Seibt, Dr. Georg (ID = 1385242) Speaker-P
Use red slider bar for more.

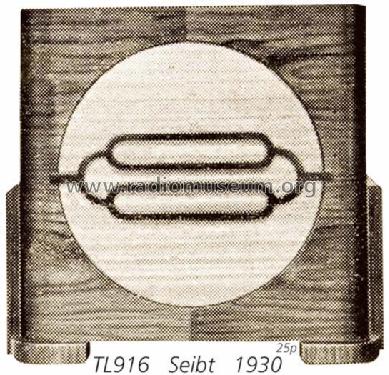

TL916; Seibt, Dr. Georg (ID = 885) Speaker-P
Seibt, Dr. Georg: TL916 [Speaker-P] ID = 885 545x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model TL916, Seibt, Dr. Georg (Nachf.); Berlin, auch München

Country:  Germany
Manufacturer / Brand:  Seibt, Dr. Georg (Nachf.); Berlin, auch München
Year: 1930–1932 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Magnetic loudspeaker (reed) of high quality (4 magnet poles).
Power out
from Radiomuseum.org Model: TL916 - Seibt, Dr. Georg Nachf.;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 410 x 240 mm / 16.9 x 16.1 x 9.4 inch
Notes Lautsprecher
Price in first year of sale 86.00 RM
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
