- Country
- Germany
- Manufacturer / Brand
- Seibt, Dr. Georg (Nachf.); Berlin, auch München
- Year
- 1931 ?
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 233600
Fertigungsnummer 156788
rechreckiges Schild: TL906 und 156788
Regulierknopf abgenommen
Magnet U-Form
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Magnetic loudspeaker (reed) generic.
- Material
- Wooden case
- from Radiomuseum.org

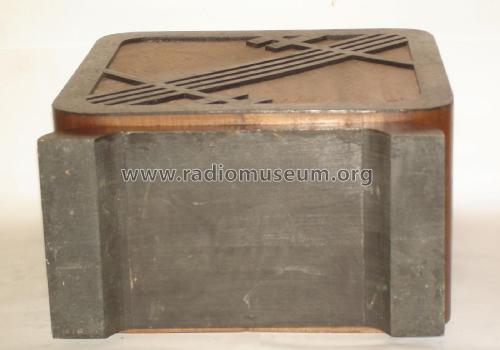

- Model: TL-906 - Seibt, Dr. Georg Nachf.;
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 330 x 365 x 200 mm / 13 x 14.4 x 7.9 inch
- Notes
-
Durchgangswiderstand bei DC ca.650 Ω; Gehäuse optisch ähnlich wie Seibt TL 914 , dort aber fünf Diagonalstreben
- Net weight (2.2 lb = 1 kg)
- 2.275 kg / 5 lb 0.2 oz (5.011 lb)
- Author
- Model page created by Manfred Rathgeb. See "Data change" for further contributors.
