3-Röhren-Superhet (R. Oechslin)
SELBSTBAU aus alter Zeit - siehe Anleitung mit Klick auf
- Country
- Germany
- Manufacturer / Brand
- SELBSTBAU aus alter Zeit - siehe Anleitung mit Klick auf
- Year
- 1936 ??
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 361923
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); Reflex
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Record Player (not changer); Visual Tuning Indicator pre Eye
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 3-Röhren-Superhet - SELBSTBAU aus alter Zeit -
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
-

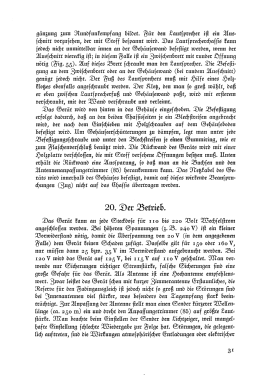

Modellbogen Nr. 154 "Spiel und Arbeit" von R. Oechslin über einen 3-Röhren-Superhet mit Reflexschaltung und Neon-Abstimmanzeige plus Grammophon vom Otto Maier Verlag, Ravensburg.
- Mentioned in
- -- Original prospect or advert (Spiel und Arbeit 154, Otto Maier, Ravensburg)
- Author
- Model page created by Adrian Riesen. See "Data change" for further contributors.
