• Year
  • 1962 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 262133

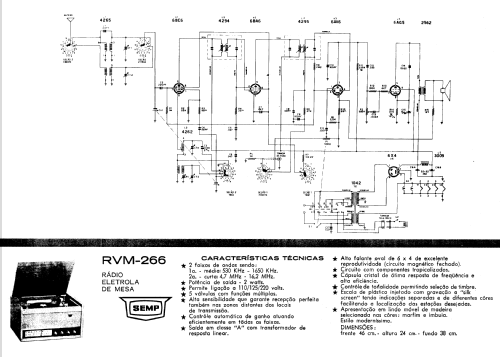

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 6 inch = 15.2 cm
  • Power out
  • 2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: RVM-266 - SEMP -TCL, Toshiba, Sociedade
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 460 x 240 x 380 mm / 18.1 x 9.4 x 15 inch
  • Notes
  • Semp - Indústria Brasileira RVM-266.

    2 Bands BC 530 -1630 kHz, SW 4,7 - 16,2 MHz.

  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by a member from BR. See "Data change" for further contributors.
