Toshiba Mini Hi-Fi system MS 6613CD

SEMP (-TCL, Toshiba), Sociedade Eletro-Mercantil Paulista; São Paulo

Data
Forum
Pictures
Collections

  • Year
  • 2005
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 326954

 Technical Specifications

  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Other Combination - see Notes; Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-127 / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 130 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Toshiba Mini Hi-Fi system MS 6613CD - SEMP -TCL, Toshiba, Sociedade
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 275 x 318 x 398 mm / 10.8 x 12.5 x 15.7 inch
  • Notes

  • 2 Channel stereo, FM MW PLL radio with 3 CD changer and dual logic cassette deck

    • MW = 530 to 1710 kHz
    • FM = 87.5 to 108 MHz
    • Output power = 2 x 65W rms @ 1 kHz, 10% THD
    • Clock and timer functions
    • Full remote control
    • Auxiliary input, phone output (3,5mm jack), microphone input

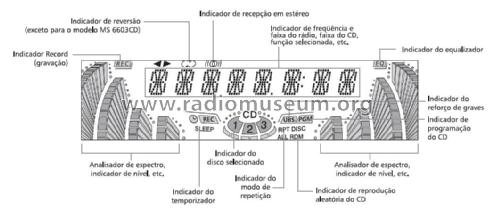

    • FTD type display
    • MP3 playability

    Accessories supplied: remote control with batteries, MW loop antena and FM indoor antena

    Supplied with two speaker box, bass reflex type, 3 way speaker

    • Dimentions (w x h x d) 200 x 318 x 282 mm
    • Weight 4,4 kg

    This set was produced at Semp factory in Manaus, Brazil, and marketed with Toshiba brand

  • Net weight (2.2 lb = 1 kg)
  • 7.7 kg / 16 lb 15.4 oz (16.96 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Antonio Rabitti. See "Data change" for further contributors.
