Drahtloser Infrarot Mono Hörer HDI405S

Drahtloser Infrarot Mono Hörer HDI405S; Sennheiser (ID = 1085616) Speaker-P
Drahtloser Infrarot Mono Hörer HDI405S; Sennheiser (ID = 819689) Speaker-P Drahtloser Infrarot Mono Hörer HDI405S; Sennheiser (ID = 819690) Speaker-P
Drahtloser Infrarot Mono Hörer HDI405S; Sennheiser (ID = 819691) Speaker-P Drahtloser Infrarot Mono Hörer HDI405S; Sennheiser (ID = 819692) Speaker-P
Drahtloser Infrarot Mono Hörer HDI405S; Sennheiser (ID = 819694) Speaker-P Drahtloser Infrarot Mono Hörer HDI405S; Sennheiser (ID = 819696) Speaker-P
Drahtloser Infrarot Mono Hörer HDI405S; Sennheiser (ID = 819711) Speaker-P Drahtloser Infrarot Mono Hörer HDI405S; Sennheiser (ID = 819914) Speaker-P
Use red slider bar for more.
Drahtloser Infrarot Mono Hörer HDI405S; Sennheiser (ID = 819689) Speaker-P
Sennheiser: Drahtloser Infrarot Mono Hörer HDI405S [Speaker-P] ID = 819689 700x818
Select picture or schematic to display from thumbnails on the right and click for download.
For model Drahtloser Infrarot Mono Hörer HDI405S, Sennheiser Electronic (Labor W); Wennebostel:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Germany
Manufacturer / Brand:  Sennheiser Electronic (Labor W); Wennebostel
Year: 1978/1979 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 2,3-2,6 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Drahtloser Infrarot Mono Hörer HDI405S - Sennheiser Electronic Labor W;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.

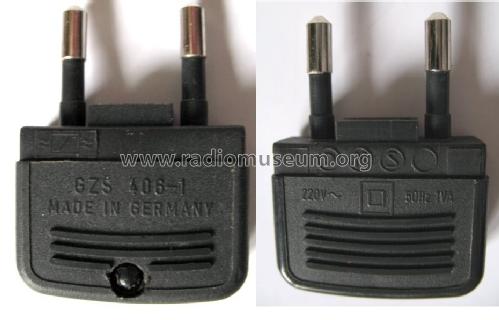

Notes Empfang über Infrarotlicht mit Schalter und Lautstärkesteller, Trägerfrequenz 95 kHz, Modulation FM, Übertragungsbereich 50 bis 8000 Hz. Akku Stecker: GZS406 ( 230 / 2,3-2,6 V ).
Net weight (2.2 lb = 1 kg) 0.070 kg / 0 lb 2.5 oz (0.154 lb)
Source of data -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Sennheiser Electronic (Labor W); Wennebostel
Here you find 281 models, 264 with images and 127 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
