• Country
• Germany

• Manufacturer / Brand
• Sennheiser Electronic (Labor W); Wennebostel

• Year
• 1988 ?

• Category
• Commercial Transmitter (TX not Transceiver)

• Radiomuseum.org ID
• 154692

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

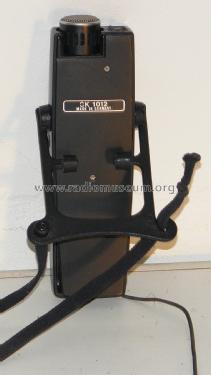

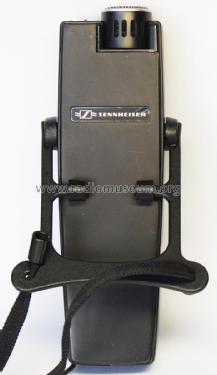

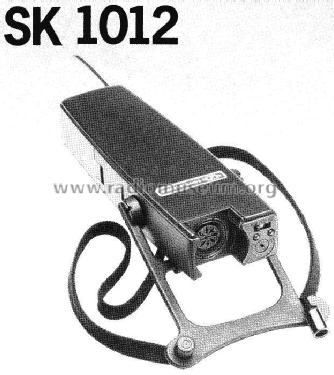

• Model: Mikroport-Sender SK1012 - Sennheiser Electronic Labor W;

• Dimensions (WHD)
• 46 x 24 x 150 mm / 1.8 x 0.9 x 5.9 inch

• Notes
• Sennheiser Mikroport-Sender SK1012.
  Sendefrequenzen: 36,7; 37,1 und 37,9 MHz; FM ± 40 kHz Hub; 50 µS Preemphase.

• Net weight (2.2 lb = 1 kg)
• 0.226 kg / 0 lb 8 oz (0.498 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
