204AT

Sentinel Radio Corp., Evanston, Illinois

Data
Forum
Pictures
Collections

  • Year
  • 1939/1940
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 227518

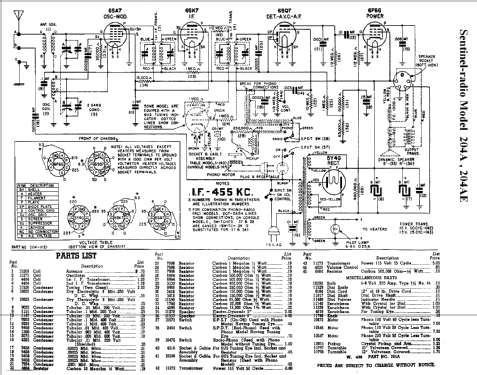

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Valves / Tubes
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Power type and voltage
  • Alternating Current supply (AC) / see text, normally 50 cycles, 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 204AT - Sentinel Radio Corp., Evanston
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 14 x 8.75 x 7 inch / 356 x 222 x 178 mm
  • Notes

  • The Sentinel models 204-A have the same schematic but different cabinets. Assumptions for the suffixes: 204-A (not sure if this is only the chassis name, no cabinet, A probably for AC), 204-AT (T for table), 204-ACE-CB (C for console, E for magic eye, CB fro record player), 204-ACT (C = console, T = tall) and 204-AE (E for magic eye). Tuning is broadcast 540 to 1730 kHz, automatic volume control (AVC). 3.5 Watt power output. The same line exists as 206-A chassis with the same cabinets but the chassis provides additional short waves 5.7 to 18.3 MHz - see for instance 206-AT.
    * Models can have a different power transformer:  11272 (39) for 115 volts 50 cycles, 11273 (40) 115 volts 25 cycles, 11719 (41) 110 - 230 volts, 50 cycles or 11721 (42) for 220 volts, 50 cycles. Models -CB are "combinations" with phonograph. See 204ATE-CB, 204ACE-CB (and 198ACE-CB).

  • Literature/Schematics (3)

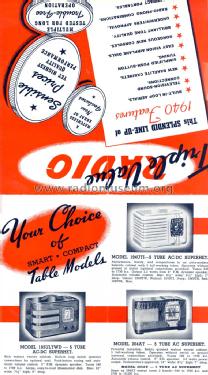

  • Shown for Season 1939/40 for 1940 in Sentinel Folder No. 120.
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
