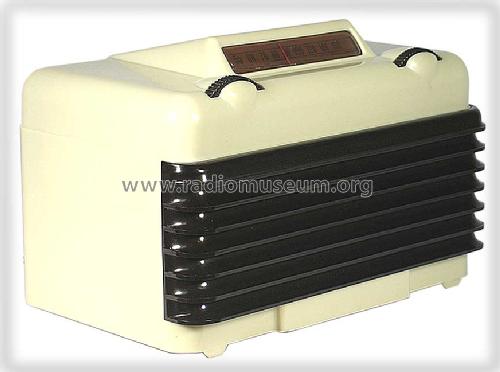

416 Frog Eyes ; Setchell Carlson, (ID = 275313) Radio 416 Frog Eyes ; Setchell Carlson, (ID = 50315) Radio
416 Frog Eyes ; Setchell Carlson, (ID = 267268) Radio 416 Frog Eyes ; Setchell Carlson, (ID = 477146) Radio
416 Frog Eyes ; Setchell Carlson, (ID = 816438) Radio 416 Frog Eyes ; Setchell Carlson, (ID = 816440) Radio
416 Frog Eyes ; Setchell Carlson, (ID = 816441) Radio 416 Frog Eyes ; Setchell Carlson, (ID = 816445) Radio
Use red slider bar for more.
416 Frog Eyes ; Setchell Carlson, (ID = 477145) Radio
Setchell Carlson,: 416 Frog Eyes [Radio] ID = 477145 649x486
Select picture or schematic to display from thumbnails on the right and click for download.
For model 416 Frog Eyes, Setchell Carlson, Inc.; St.Paul (MN)

Country:  United States of America (USA)
Manufacturer / Brand:  Setchell Carlson, Inc.; St.Paul (MN)
Brand

Doraphone
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner

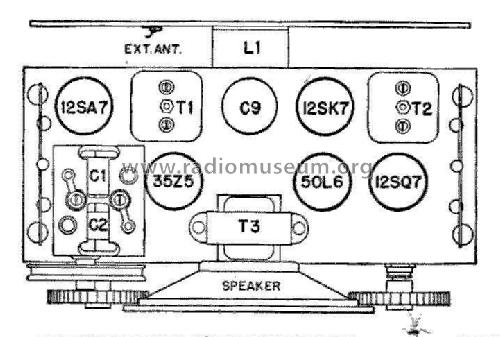

Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6 35Z5
Main principle ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.75 inch = 12.1 cm
Power out
from Radiomuseum.org Model: 416 Frog Eyes - Setchell Carlson, Inc.; St.
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 250 x 165 x 165 mm / 9.8 x 6.5 x 6.5 inch
Notes

Built-in loop antenna.

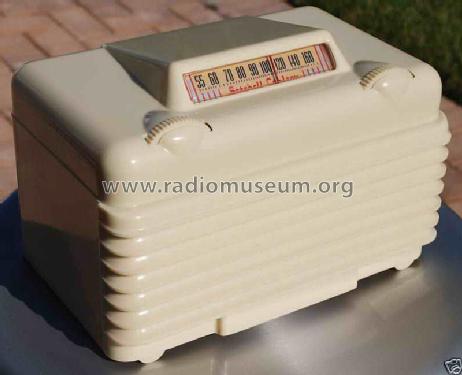

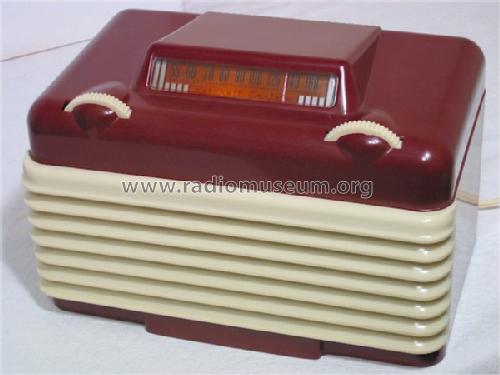

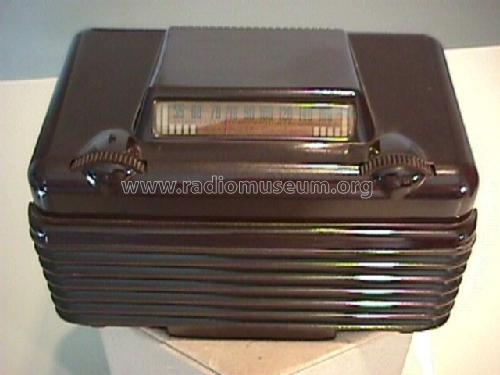

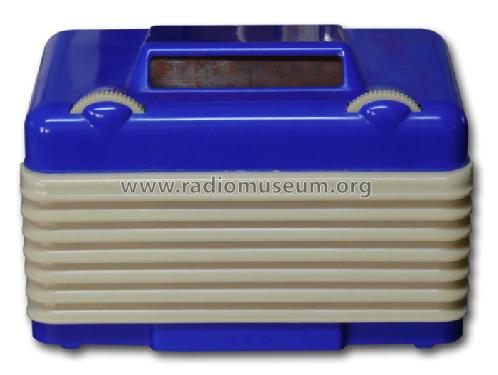

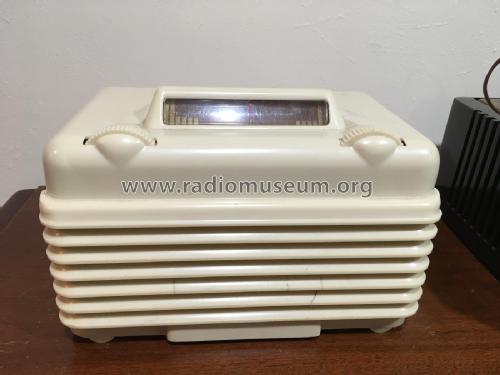

Colors: Brown, Ivory, Blue with Ivory, Red with Ivory.

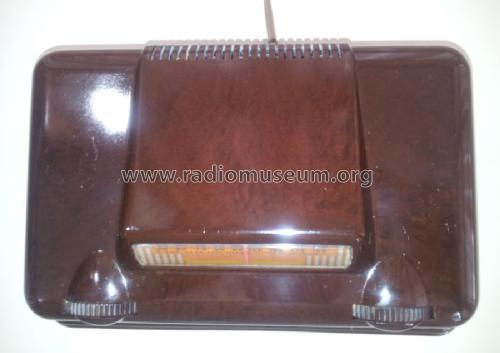

Model 416 A has the cabinet made ​​in maroon marbled bakelite.

Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition

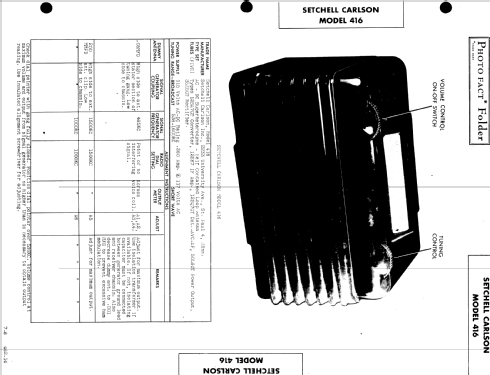

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 2 folder 462-14 date 7-46)
Literature/Schematics (2) Radio Retailing (Radio & Television R.) (April 1946 page 81.)
Literature/Schematics (3) Machine Age to Jet Age II
Literature/Schematics (4) Table Top Radios Vol. 1 Stein 98 (page 141.)


All listed radios etc. from Setchell Carlson, Inc.; St.Paul (MN)
Here you find 107 models, 69 with images and 85 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
