4182 (4182c1)

4182 ; Setchell Carlson, (ID = 274556) Radio
4182 ; Setchell Carlson, (ID = 274555) Radio
Use red slider bar for more.
4182 ; Setchell Carlson, (ID = 274555) Radio

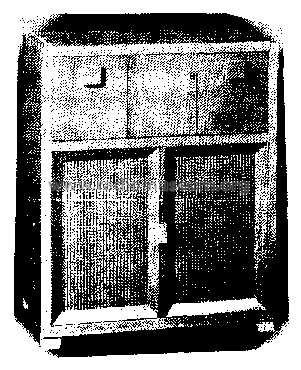

Setchell Carlson,: 4182 [Radio] ID = 274555 301x370
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4182 (4182c1), Setchell Carlson, Inc.; St.Paul (MN)

Country:  United States of America (USA)
Manufacturer / Brand:  Setchell Carlson, Inc.; St.Paul (MN)
Brand

Doraphone
Year: 1952 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6SK7 6SA7 6SK7 6SQ7 6SQ7 6V6 6V6 6X5
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
Power out
from Radiomuseum.org Model: 4182 - Setchell Carlson, Inc.; St.
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 20 covering 1950
