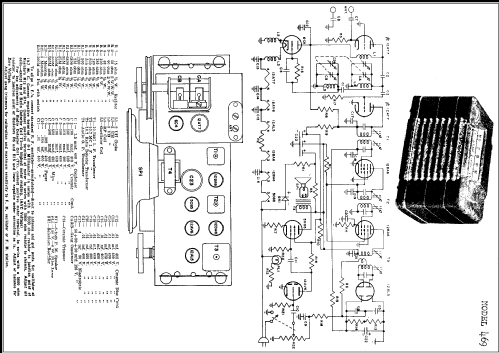

Setchell Carlson,: 469 [Radio] ID = 274552 551x412
Select picture or schematic to display from thumbnails on the right and click for download.
For model 469, Setchell Carlson, Inc.; St.Paul (MN)

Country:  United States of America (USA)
Manufacturer / Brand:  Setchell Carlson, Inc.; St.Paul (MN)
Brand

Doraphone
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 12AT7 6C4 12BA6 12BA6 12AL5 12AV6 50B5
Main principle Superhet with RF-stage; ZF/IF 10700 kHz; 2 AF stage(s)
Tuned circuits 8 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 469 - Setchell Carlson, Inc.; St.
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes Selenium Rectifier
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 20 covering 1950
Mentioned in Antique Radios, Johnson 1986


All listed radios etc. from Setchell Carlson, Inc.; St.Paul (MN)
Here you find 107 models, 69 with images and 85 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
