5110 "Jet" Ch= 511A

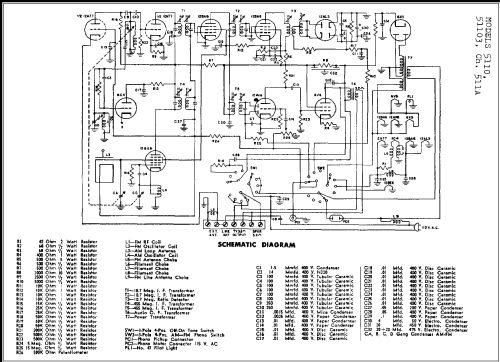

5110 'Jet' Ch= 511A; Setchell Carlson, (ID = 255016) Radio

5110 'Jet' Ch= 511A; Setchell Carlson, (ID = 255017) Radio
5110 'Jet' Ch= 511A; Setchell Carlson, (ID = 1370820) Radio 5110 'Jet' Ch= 511A; Setchell Carlson, (ID = 1370821) Radio
5110 'Jet' Ch= 511A; Setchell Carlson, (ID = 1370822) Radio 5110 'Jet' Ch= 511A; Setchell Carlson, (ID = 1370823) Radio
5110 'Jet' Ch= 511A; Setchell Carlson, (ID = 1507212) Radio
Use red slider bar for more.

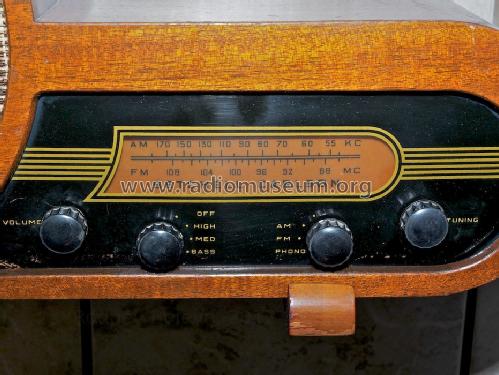

5110 'Jet' Ch= 511A; Setchell Carlson, (ID = 1370820) Radio
Setchell Carlson,: 5110 "Jet" Ch= 511A [Radio] ID = 1370820 933x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5110 "Jet" Ch= 511A, Setchell Carlson, Inc.; St.Paul (MN)

Country:  United States of America (USA)
Manufacturer / Brand:  Setchell Carlson, Inc.; St.Paul (MN)
Brand

Doraphone
Year: 1953 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 12AT7 6C4 12BE6 12BA6 12BA6 12AL5 12AV6 6V6 6X5
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
Power out
from Radiomuseum.org Model: 5110 "Jet" Ch= 511A - Setchell Carlson, Inc.; St.
Material Wooden case
Shape Tablemodel, with any shape - general.
Collectors' prices
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 21, Copyright 1950


All listed radios etc. from Setchell Carlson, Inc.; St.Paul (MN)
Here you find 106 models, 68 with images and 85 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
