55 ; Setchell Carlson, (ID = 448739) Radio
Use red slider bar for more.
55 ; Setchell Carlson, (ID = 448739) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Setchell Carlson, Inc.; St.Paul (MN)
Brand

Doraphone
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1A7G 1N5G 1H5G 1A5G 6X5GT
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Line / Batteries (any type) / 115; 6 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 55 - Setchell Carlson, Inc.; St.
Shape Portable set > 8 inch (also usable without mains)
Notes Built-in loop antenna.
External source of data Ernst Erb
Source of data Guide to Old Radios

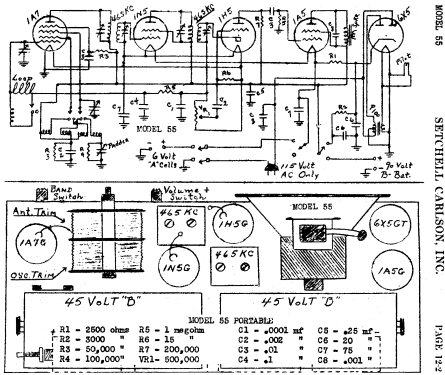

Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
