570 Cylinder

570 Cylinder ; Setchell Carlson, (ID = 255012) Radio
570 Cylinder ; Setchell Carlson, (ID = 1573092) Radio 570 Cylinder ; Setchell Carlson, (ID = 338762) Radio
570 Cylinder ; Setchell Carlson, (ID = 338761) Radio 570 Cylinder ; Setchell Carlson, (ID = 338760) Radio
570 Cylinder ; Setchell Carlson, (ID = 338759) Radio 570 Cylinder ; Setchell Carlson, (ID = 1473106) Radio
570 Cylinder ; Setchell Carlson, (ID = 1573093) Radio 570 Cylinder ; Setchell Carlson, (ID = 1573095) Radio
570 Cylinder ; Setchell Carlson, (ID = 1573096) Radio 570 Cylinder ; Setchell Carlson, (ID = 1573097) Radio
Use red slider bar for more.
570 Cylinder ; Setchell Carlson, (ID = 1573092) Radio
Setchell Carlson,: 570 Cylinder [Radio] ID = 1573092 933x599
Select picture or schematic to display from thumbnails on the right and click for download.
For model 570 Cylinder, Setchell Carlson, Inc.; St.Paul (MN):
Setchell Carlson - 570 Cylinder Radio - 5 tube - 2

Country:  United States of America (USA)
Manufacturer / Brand:  Setchell Carlson, Inc.; St.Paul (MN)
Brand

Doraphone
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50B5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 570 Cylinder - Setchell Carlson, Inc.; St.
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes

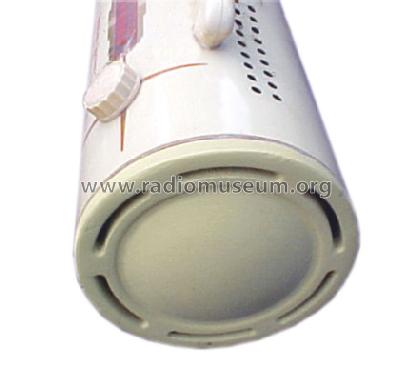

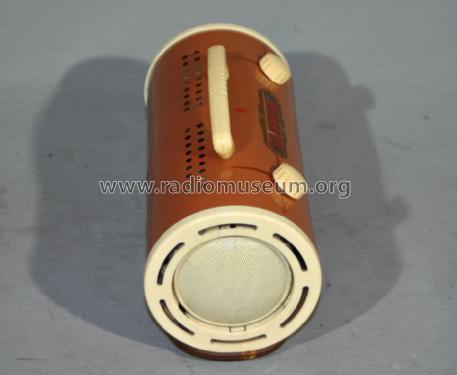

Reverse-painted acrylic with ivory plastic or wood ends, detacheable speaker.

Colors: Black, Orange, Red, Yellow.



External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 21, Copyright 1950
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Table Top Radios Vol. 1 Stein 98 (page 141.)


All listed radios etc. from Setchell Carlson, Inc.; St.Paul (MN)
Here you find 107 models, 69 with images and 85 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
