For model 58C21 Ch= 258-A, Setchell Carlson, Inc.; St.Paul (MN):

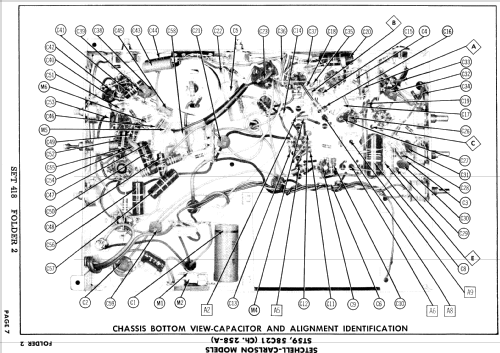

Sams Photofact Folders reference picture.

Country:  United States of America (USA)
Manufacturer / Brand:  Setchell Carlson, Inc.; St.Paul (MN)
Brand

Doraphone
Year: 1958 Category: Television Receiver (TV) or Monitor
Valves / Tubes 16: 21CBP4A
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
Power out
from Radiomuseum.org Model: 58C21 Ch= 258-A - Setchell Carlson, Inc.; St.
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes 21" b/w TV with US standard VHF Tuner, Channels 2 thru 13.
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 10-58, Set 418, Folder 2)

Model page created by Egon Penker. See "Data change" for further contributors.
