Chassis RP90A

Chassis RP90A; Setchell Carlson, (ID = 557063) Ampl/Mixer

Chassis RP90A; Setchell Carlson, (ID = 557064) Ampl/Mixer

Chassis RP90A; Setchell Carlson, (ID = 557065) Ampl/Mixer

Chassis RP90A; Setchell Carlson, (ID = 557066) Ampl/Mixer
Chassis RP90A; Setchell Carlson, (ID = 557062) Ampl/Mixer
Use red slider bar for more.

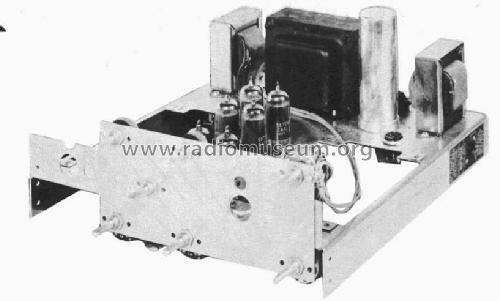

Chassis RP90A; Setchell Carlson, (ID = 557062) Ampl/Mixer
Setchell Carlson,: Chassis RP90A [Ampl/Mixer] ID = 557062 817x493
Select picture or schematic to display from thumbnails on the right and click for download.
For model Chassis RP90A, Setchell Carlson, Inc.; St.Paul (MN):
Sams photofact.

Country:  United States of America (USA)
Manufacturer / Brand:  Setchell Carlson, Inc.; St.Paul (MN)
Brand

Doraphone
Year: 1959 ? Category: Audio Amplifier or -mixer
Valves / Tubes 6: 6CL8 6CL8 6CM6 6CM6 6CM6 6CM6
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Chassis RP90A - Setchell Carlson, Inc.; St.
Material Metal case
Shape Chassis only or for «building in»
Notes AC operated stereo amplifier chassis.
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 490 folder 11 date 6-60)

Model page created by Peter Hoddow. See "Data change" for further contributors.
