P-63 Ch= C-102; Setchell Carlson, (ID = 832542) Television
Setchell Carlson,: P-63 Ch= C-102 [Television] ID = 832542 650x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model P-63 Ch= C-102, Setchell Carlson, Inc.; St.Paul (MN):

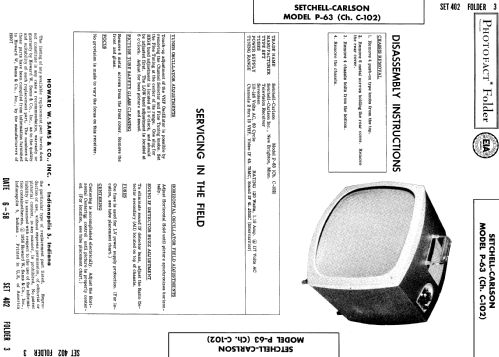

Sams Photofact Folders reference picture.

Country:  United States of America (USA)
Manufacturer / Brand:  Setchell Carlson, Inc.; St.Paul (MN)
Brand

Doraphone
Year: 1958 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: 17BJP4
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: P-63 Ch= C-102 - Setchell Carlson, Inc.; St.
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes 17" b/w TV with US standard VHF, Channels 2 thru 13.
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 6-58, Set 402, Folder 3)

Model page created by Egon Penker. See "Data change" for further contributors.
