Radio-Dor-A-Fone 421RD

Radio-Dor-A-Fone 421RD ; Setchell Carlson, (ID = 449940) Radio
Radio-Dor-A-Fone 421RD ; Setchell Carlson, (ID = 366428) Radio Radio-Dor-A-Fone 421RD ; Setchell Carlson, (ID = 366430) Radio
Radio-Dor-A-Fone 421RD ; Setchell Carlson, (ID = 366431) Radio Radio-Dor-A-Fone 421RD ; Setchell Carlson, (ID = 366432) Radio
Radio-Dor-A-Fone 421RD ; Setchell Carlson, (ID = 1502026) Radio Radio-Dor-A-Fone 421RD ; Setchell Carlson, (ID = 1950749) Radio
Use red slider bar for more.

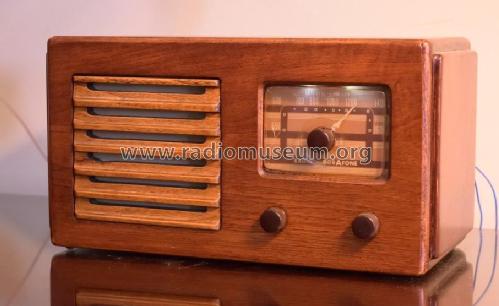

Radio-Dor-A-Fone 421RD ; Setchell Carlson, (ID = 366428) Radio
Setchell Carlson,: Radio-Dor-A-Fone 421RD [Radio] ID = 366428 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radio-Dor-A-Fone 421RD, Setchell Carlson, Inc.; St.Paul (MN):
Picture courtesy of eBay seller chinobob

Country:  United States of America (USA)
Manufacturer / Brand:  Setchell Carlson, Inc.; St.Paul (MN)
Brand

Doraphone
Year: 1945 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12A8 12K7 12SQ7 50L6 35Z5
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Radio-Dor-A-Fone 421RD - Setchell Carlson, Inc.; St.
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes Combination radio and intercom; built-in loop antenna.
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 14 = 1944 = before 1943
Mentioned in Machine Age to Jet Age II (page 353.)


All listed radios etc. from Setchell Carlson, Inc.; St.Paul (MN)
Here you find 107 models, 69 with images and 85 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
