For model RP91 Ch= H-60 + J-60 + RP-90, Setchell Carlson, Inc.; St.Paul (MN):
Sams Photofact Folders

Country:  United States of America (USA)
Manufacturer / Brand:  Setchell Carlson, Inc.; St.Paul (MN)
Brand

Doraphone
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 13: 12AT7 12AT7 6AU6 6AU6 6BA6 6BE6 6BA6 6CL8 6CL8 6CM6 6CM6 6CM6 6CM6
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker 7 or more Loudspeakers
Power out
from Radiomuseum.org Model: RP91 Ch= H-60 + J-60 + RP-90 - Setchell Carlson, Inc.; St.
Material Wooden case
Shape Console with any shape - in general
Notes The Setchell-Carlson Model RP91 is an AC operated 4 Tube FM Receiver (J-60), 3 Tube AM Receiver (H-60), 6 Tube Stereo Amplifier (RP-90) and 4 Speed Automatic Record Changer.

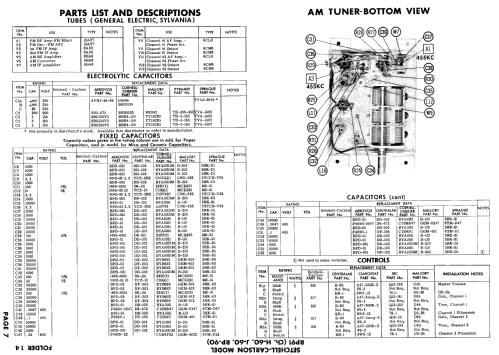

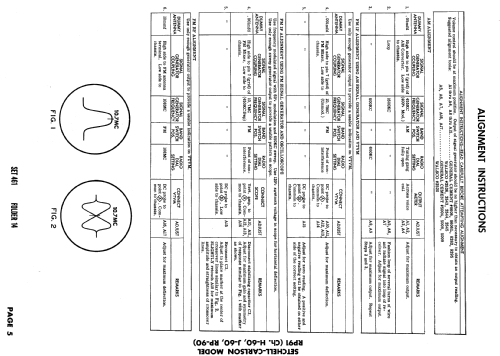

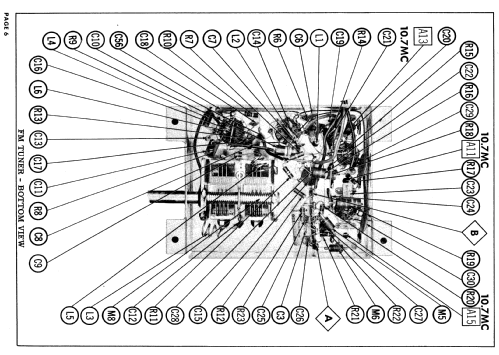

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 10-59, Set 461, Folder 14)

Model page created by Egon Penker. See "Data change" for further contributors.
