X13 ; Setchell Carlson, (ID = 217123) Radio

X13 ; Setchell Carlson, (ID = 217124) Radio
X13 ; Setchell Carlson, (ID = 663594) Radio X13 ; Setchell Carlson, (ID = 663596) Radio
X13 ; Setchell Carlson, (ID = 663595) Radio X13 ; Setchell Carlson, (ID = 663597) Radio
Use red slider bar for more.
X13 ; Setchell Carlson, (ID = 663594) Radio
Setchell Carlson,: X13 [Radio] ID = 663594 933x676
Select picture or schematic to display from thumbnails on the right and click for download.
For model X13, Setchell Carlson, Inc.; St.Paul (MN):
Fotos der Auktion 280391955328, mit persönlicher Bitte des Verkäufers diesem Radio hier ein Gesicht zu geben

Country:  United States of America (USA)
Manufacturer / Brand:  Setchell Carlson, Inc.; St.Paul (MN)
Brand

Doraphone
Year: 1955 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: X13 - Setchell Carlson, Inc.; St.
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
External source of data Ernst Erb

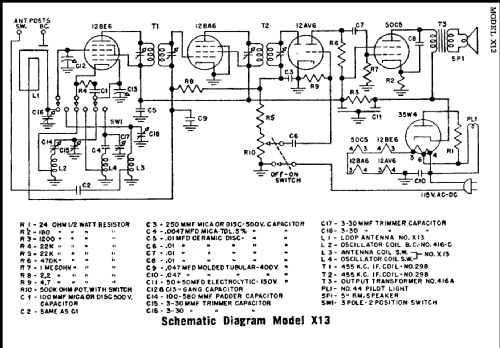

Circuit diagram reference Rider's Perpetual, Volume 23 (last), covering up to 1954


All listed radios etc. from Setchell Carlson, Inc.; St.Paul (MN)
Here you find 107 models, 69 with images and 85 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
