SFE06
Use red slider bar for more.

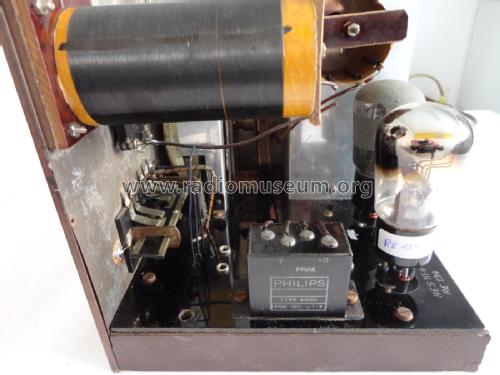

Sevecke, Carl,: SFE06 [Radio] ID = 2410685 1400x1866
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
CSH | ||||
|---|---|---|---|---|---|
Year:
1929 ?
|
Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 4: RENS1204 REN904 RE134 or RES164 RGN504 |
| Main principle | TRF without regeneration |
|---|---|
| Tuned circuits | 2 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) |
| Loudspeaker | |
| Power out | |
| from Radiomuseum.org | Model: SFE06 - Sevecke, Carl, Elektrotechn. |
| Material | Wooden case |
| Shape | Tablemodel, high profile (upright - NOT Cathedral nor decorative). |
| Notes | Diese Röhrenbestückung: RENS1204 REN904 RE134 or RES164 RGN504 - erlaubt nur Jahr ab 1929. |
| External source of data | E. Erb 3-907007-36-0 |
| Source of data | Radiokatalog Band 2, Ernst Erb |
| Circuit diagram reference | Röhren in FS-Bestückungstabellen |
