380 90AL380 /28

380 90AL380 /28; Radiola marque (ID = 1870771) Radio
Use red slider bar for more.
380 90AL380 /28; Radiola marque (ID = 1870771) Radio

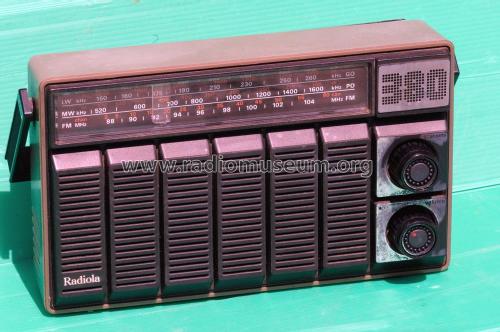

Radiola marque: 380 90AL380 /28 [Radio] ID = 1870771 1000x664
Select picture or schematic to display from thumbnails on the right and click for download.
For model 380 90AL380 /28, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1977 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: ED1502 or. BF494 ED1402 or. BC548 ED1602 or. BC558 AC127 AC128 2SB324 or. AC128 CDG00 or. BA216 1N60 or. AA119 CDG24 or. BA216 1N4001 or. BY188B
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz; 3 AF stage(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / AC: 110; 220 / R14: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: 380 90AL380 /28 - Radiola marque
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 240 x 140 x 60 mm / 9.4 x 5.5 x 2.4 inch
Notes

Antenne ferroxcube pour AM, antenne télescopique pour FM.

Equivalent au Philips 90AL380.

Dans la liste des transistors et diodes, chaque type est mentionné qu'une seule fois.

Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Jean-Louis Buton. See "Data change" for further contributors.
