RA303T /00L /00S /00X

Radiola (marque)

  • Year
  • 1963/1964
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 239346
    • Brand: SFER

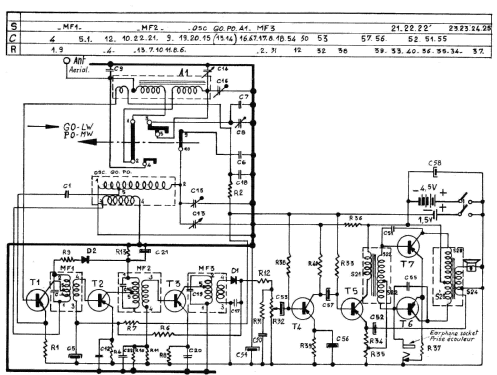

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries / 3 x 1,5 & 1 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
  • Power out
  • 0.25 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: RA303T /00L /00S /00X - Radiola marque
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 254 x 144 x 68 mm / 10 x 5.7 x 2.7 inch
  • Notes
  • Gammes d'ondes: PO 580 à 183 m, GO 2020 à 1128 m. Clavier 2 touches. Dispositif "Longimax" économiseur de piles. Pile bâton de polarisation 1,5 V. Prise pour écouteur type ER1500. Cadre ferrocapteur incorporé. Prise antenne voiture.

    Coffret polystyrène en 2 pièces, arrière gainée. Executions:

    • /00L: arrière rouge, façade ivoire, grille ardoise, cadran jaune
    • /00S: arrière gris clair, façade gris clair, grille blanc, cadran orange
    • /00X: arrière anthracite, façade ivoire, grille ardoise, cadran jaune

    Mallette-sac sur demande.

    Ne pas confondre avec RA303T/00, un auto-radio de 1973.

  • Net weight (2.2 lb = 1 kg)
  • 1.1 kg / 2 lb 6.8 oz (2.423 lb)
  • Mentioned in
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • -- Original-techn. papers.
