RA382T /00G /00L /00W

RA382T /00G /00L /00W; Radiola marque (ID = 2327704) Radio RA382T /00G /00L /00W; Radiola marque (ID = 2327706) Radio
RA382T /00G /00L /00W; Radiola marque (ID = 2327705) Radio RA382T /00G /00L /00W; Radiola marque (ID = 2327703) Radio

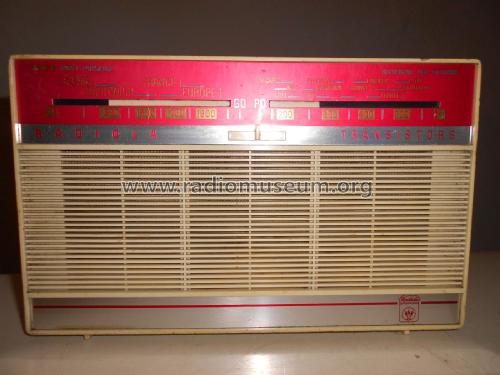

RA382T /00G /00L /00W; Radiola marque (ID = 2327702) Radio
Use red slider bar for more.
RA382T /00G /00L /00W; Radiola marque (ID = 2327704) Radio
Radiola marque: RA382T /00G /00L /00W [Radio] ID = 2327704 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA382T /00G /00L /00W, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: AF117 AF117 AF117 OC75 OC74 OC74 OA79 OA79
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 x 4.5 or 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: RA382T /00G /00L /00W - Radiola marque
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 165 x 80 mm / 10.2 x 6.5 x 3.1 inch
Notes

2 gammes d'ondes: PO de 525 à 1620 kHz, GO de 148 à 264 kHz. Cadre ferrite de 200 mm. HP type FD 044 58 (Z = 20 ohms). Prise pour HP extérieur ou écouteur ER30.

Coffret bois gainée, 3 exécutions :

  • /00G gris bleu
  • /00L rouge
  • /00W orange chiné

Mallette-sac sur demande. Poids piles comprises.

Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Mentioned in -- Original prospect or advert
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
