RA224T; Radiola marque (ID = 2220776) Car Radio
Radiola marque: RA224T [Car Radio] ID = 2220776 933x406
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA224T, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1963–1966 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 7: AF117 AF127 AF127 AC125 AC125 AC128 AC128 AA119 AA119
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 1.2 W (unknown quality)
from Radiomuseum.org Model: RA224T - Radiola marque
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 120 x 35 x 100 mm / 4.7 x 1.4 x 3.9 inch
Notes

2 gammes d'ondes PO 187 à 572 m, GO 1100 à 1950 m. Sortie BF par push-pull.

Fonctionne sur 12 volts seulement. Voir modèle RA226T pour version 6 volts (différences mineures).

Il existe aussi un modèle RA224T pour 24 volts (données prises à partir de tarif Octobre 1967).

Équivalent au Philips N2F42T.

Price in first year of sale 259.00 FRF

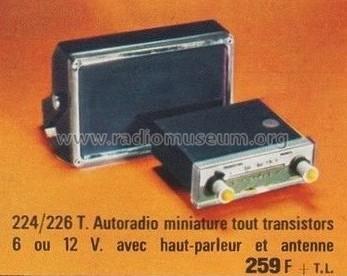

Mentioned in -- Original prospect or advert
Literature/Schematics (2) -- Original-techn. papers.

Model page created by a member from A. See "Data change" for further contributors.
