Spécial Marine RA418T /00Z

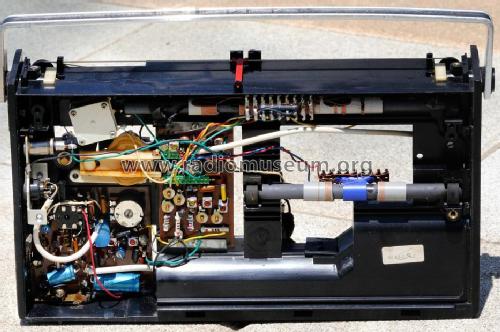

Spécial Marine RA418T /00Z; Radiola marque (ID = 1469715) Radio Spécial Marine RA418T /00Z; Radiola marque (ID = 1469716) Radio
Use red slider bar for more.
Spécial Marine RA418T /00Z; Radiola marque (ID = 1469715) Radio
Radiola marque: Spécial Marine RA418T /00Z [Radio] ID = 1469715 933x632
Select picture or schematic to display from thumbnails on the right and click for download.
For model Spécial Marine RA418T /00Z, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1969/1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: BF194 BF195 BF195 BC149 BC149 AC187 AC188
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: Spécial Marine RA418T /00Z - Radiola marque
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 300 x 175 x 78 mm / 11.8 x 6.9 x 3.1 inch
Notes

3 gammes d'ondes dont 1 bande Marine. 2 cadres ferroxcube, un de 20 cm pour PO et GO, un de 14 cm et circuit spécial pour antenne extérieure pour gamme Marine. Prises antenne, écouteur et magnétophone. Prise pour goniomètre extérieur.

Coffret polystyrène placage façon teck.

Équivalent au Philips 11RM481 /00Z.

Net weight (2.2 lb = 1 kg) 1.6 kg / 3 lb 8.4 oz (3.524 lb)
Price in first year of sale 339.00 FRF
Mentioned in Le Haut-Parleur (No. spécial 1232, 23.10.1969)
Literature/Schematics (1) - - Manufacturers Literature (Radiola Service No.5, Mai 1969)

Model page created by Jean-Louis Buton. See "Data change" for further contributors.
