Boîte d'accord Type P2
Use red slider bar for more.

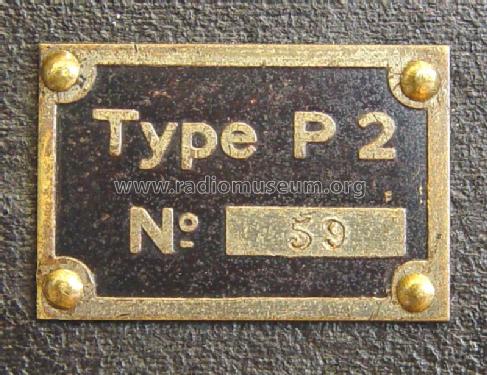

Radiola marque: Boîte d'accord Type P2 [mod-pre26] ID = 1478432 800x568
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
SFER | ||||
|---|---|---|---|---|---|
| Year: 1923 ? | Category: Radio module pre 1926 (not a part, not a key) |
| Main principle | RF-Circuit or wave trap (separate, can also be an antenna with amp.) |
|---|---|
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | - - No sound reproduction output. |
| Power out | |
| from Radiomuseum.org | Model: Boîte d'accord Type P2 - Radiola marque |
| Material | Wooden case |
| Shape | Tablemodel, Box - most often with Lid (NOT slant panel). |
| Dimensions (WHD) | 280 x 150 x 140 mm / 11 x 5.9 x 5.5 inch |
| Notes | Accordeur sans lampe. Permet l'application de la réaction d'un amplificateur Radiola raccordée en ligne (modèles disponibles avec 2, 3, ou 4 lampes). Inscriptions sur les boutons: Accord, Ondes Croissantes, Renforcement. Voir aussi modèle probablement identique Radiolina 2. |
Model page created by William Fague. See "Data change" for further contributors.
