Meiduo 美多 662G-1-1
Shanghai 上海无线电厂 Shanghai Radio Factory, Shanghai (E)
- Country
- People's Republic of China
- Manufacturer / Brand
- Shanghai 上海无线电厂 Shanghai Radio Factory, Shanghai (E)
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 176332
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- from Radiomuseum.org
- Model: Meiduo 美多 662G-1-1 - Shanghai 上海无线电厂 Shanghai
- Shape
- Tablemodel, low profile (big size).
- Notes
- The model Meiduo 美多 662G-1-1 has broadband 550 - 1600 kHz (187 - 545 m) and SW 6- 18 MHz (16.6 - 50 m). The US-type tubes are given without GT in the schematic but we presume they aree Glass Tubular tubes and not metal tubes.
- Literature/Schematics (1)

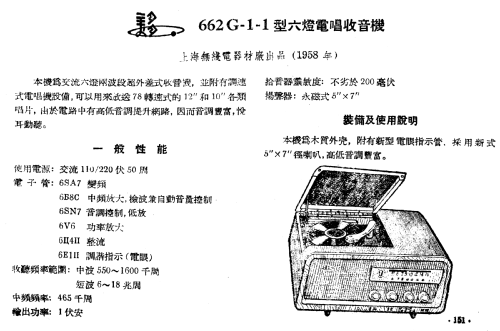

- 10-Broadcast Radio Manual, July 1959 (1958/59) (page 151.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
