• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1980 ??

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 166386

• • alternative name: Hayakawa Electric Co.Ltd.

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

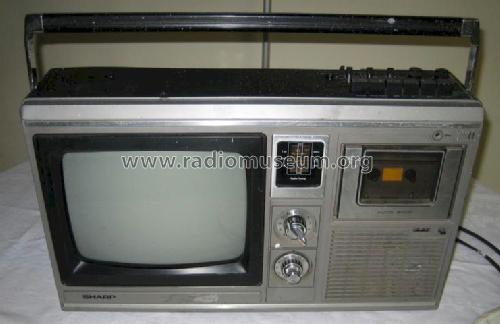

• Model: 10P-18G - Sharp; Osaka

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 490 x 290 x 260 mm / 19.3 x 11.4 x 10.2 inch

• Notes
• Betrieb über Netz, oder ext. 12= Volt, Bilddiagonale 24 cm, SW, schaltbarer Abschwächer für MW, LW, AFC für UKW, Kassettendeck mit Bandzählwerk, Auto-Stop (nur Aufnahme/Wiedergabe), Anschlüsse für Mikrofon mit Fernschalter, Ohrhörer, Tonband/Radio, Antenne (75 Ohm), ext. 12= Volt, TV-Empfang VHF/UHF.

• Net weight (2.2 lb = 1 kg)
• 6.9 kg / 15 lb 3.2 oz (15.198 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Michael Schott. See "Data change" for further contributors.

• Other Models

• Here you find 1328 models, 1200 with images and 515 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
