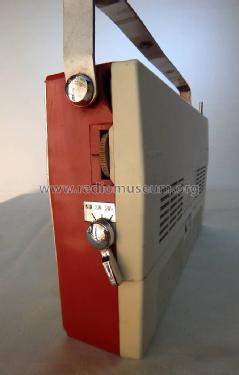

3 Band 8-Transistor BY-488

Sharp; Osaka

  • Year
  • 1985 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 211019
    • alternative name: Hayakawa Electric Co.Ltd.

 Technical Specifications

  • Number of Transistors
  • 8
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Dry Batteries / 4 x 1,5 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 0.5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 3 Band 8-Transistor BY-488 - Sharp; Osaka
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 270 x 160 x 55 mm / 10.6 x 6.3 x 2.2 inch
  • Notes
  • Sharp 3 Band 8 Transistor Model BY-488 Hi-Fi Dual Speaker System.
    Frequency Range: MW 530 - 1650 KC, SW1 3.9 - 12 MC, SW2 12 - 26.5 MC.
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
