3-Band Graphic Equalizer Extra Bass Sound System Stereo Radio Cassette Recorder WQ-T354A

Sharp; Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1987 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 363085
    • alternative name: Hayakawa Electric Co.Ltd.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 50 Hz, 240 / D: 8 x 1.5 Volt
  • Loudspeaker
  • 5 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 3-Band Graphic Equalizer Extra Bass Sound System Stereo Radio Cassette Recorder WQ-T354A - Sharp; Osaka
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 665 x 200 x 190 mm / 26.2 x 7.9 x 7.5 inch
  • Notes

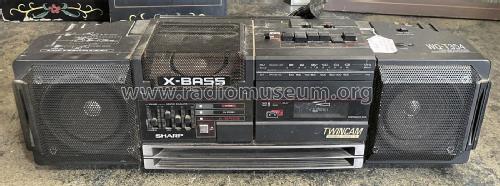

  • Portable stereo AM/FM radio with twin cassette player/recorder (Australian model).

    BK (Black)

    Speakers:
    4" free edge super woofer x 1
    4¾" free edge woofer x 2
    Tweeters x 2

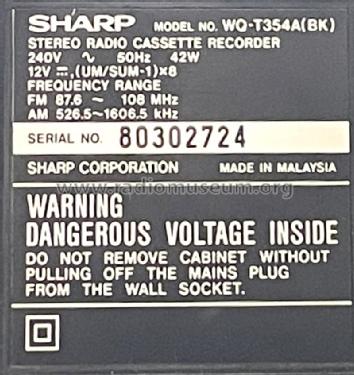

    Power output:
    MPO; 34 W (8.5 + 8.5 + 17 W)
    RMS; 16 W (4 + 4 + 8 W)

    Frequency range:
    AM 526.5 - 1605 kHz
    FM 87.6 - 108 MHz

    See also:
    WQ-T354E (50 Hz, 240 V, with LW & SW, for United Kingdom)
    WQ-T354H (50-60 Hz, 110-120; 220-240 V, with LW & SW, for Europe)

    Made in Malaysia.

  • Net weight (2.2 lb = 1 kg)
  • 5.7 kg / 12 lb 8.9 oz (12.555 lb)
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
